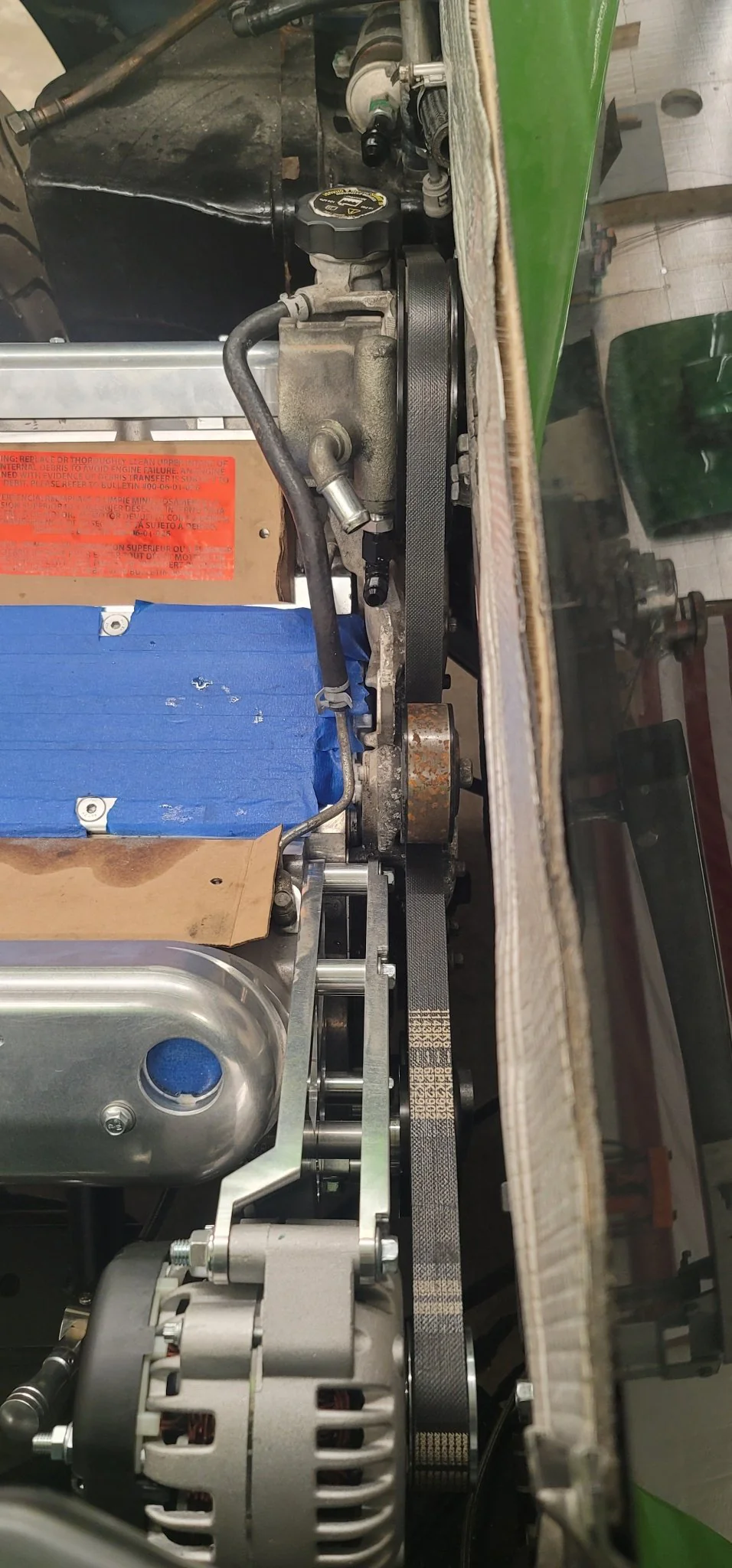

Product image 10
Product image 11

2003-2008 Lamborghini Gallardo LS Engine Mount Conversion Swap Kit

2003-2008 Lamborghini Gallardo LS Engine Mount Conversion Swap Kit

Compatible with 2003-2008 Pre-LP Lamborghini Gallardo applications

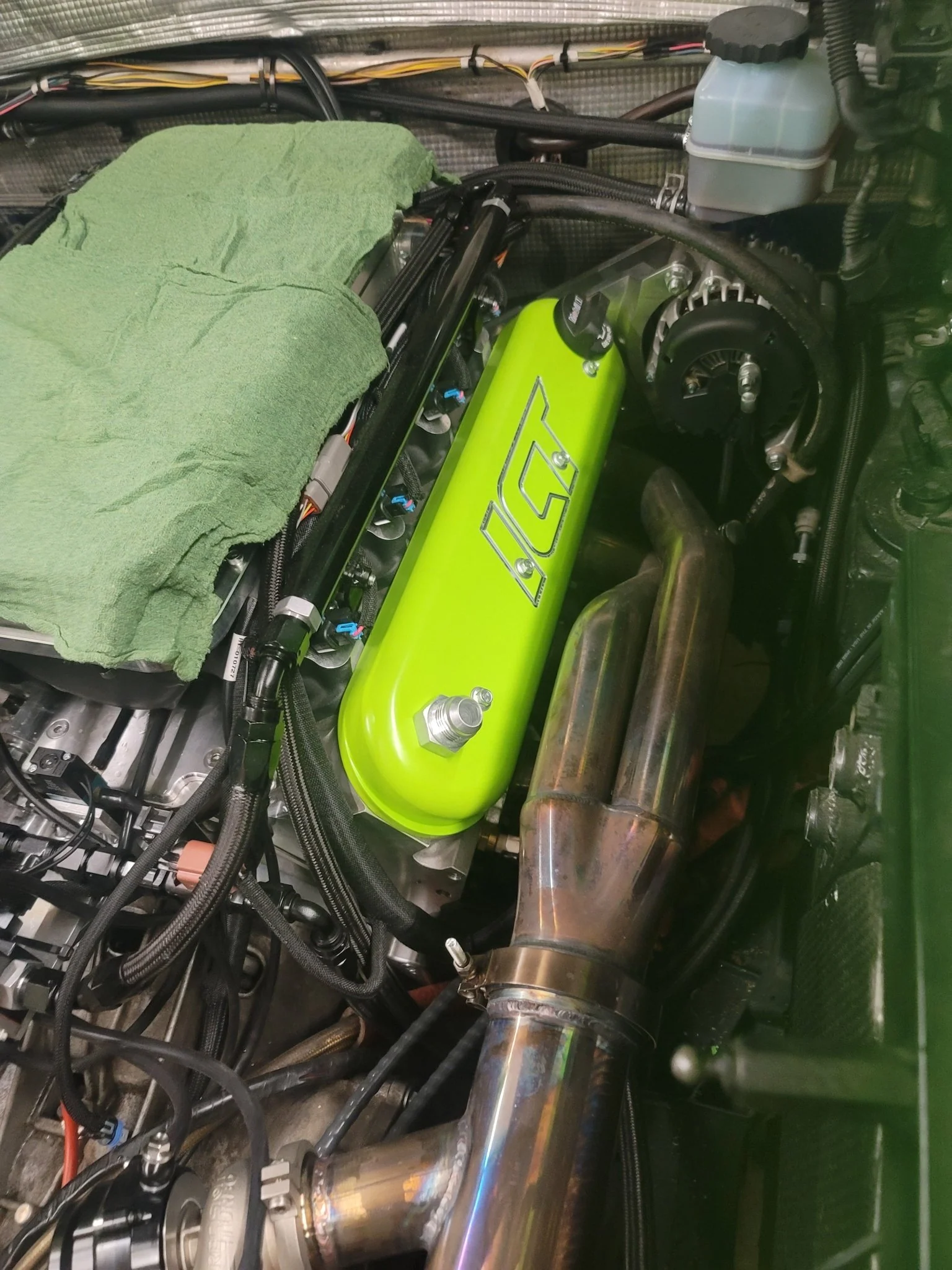

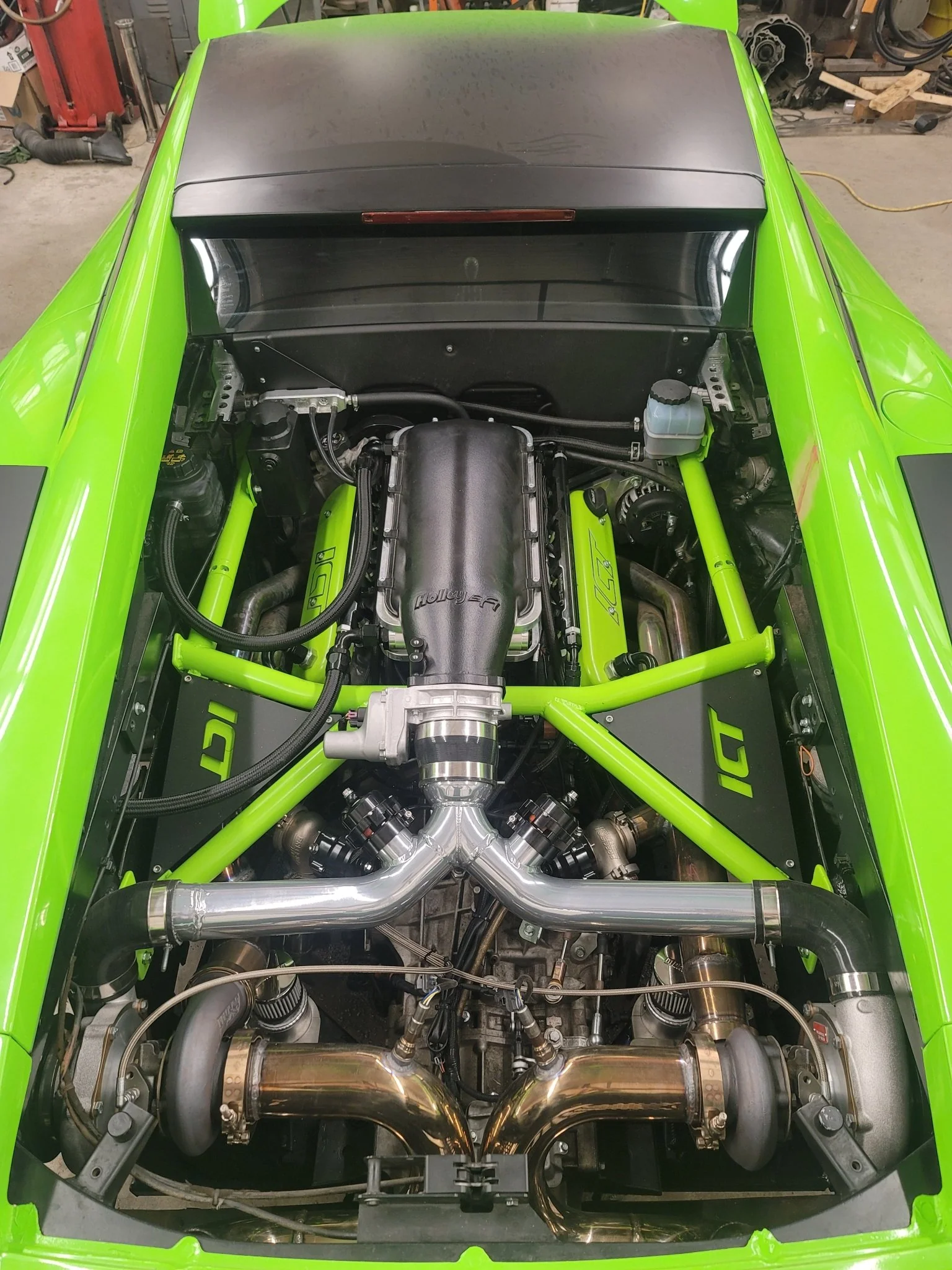

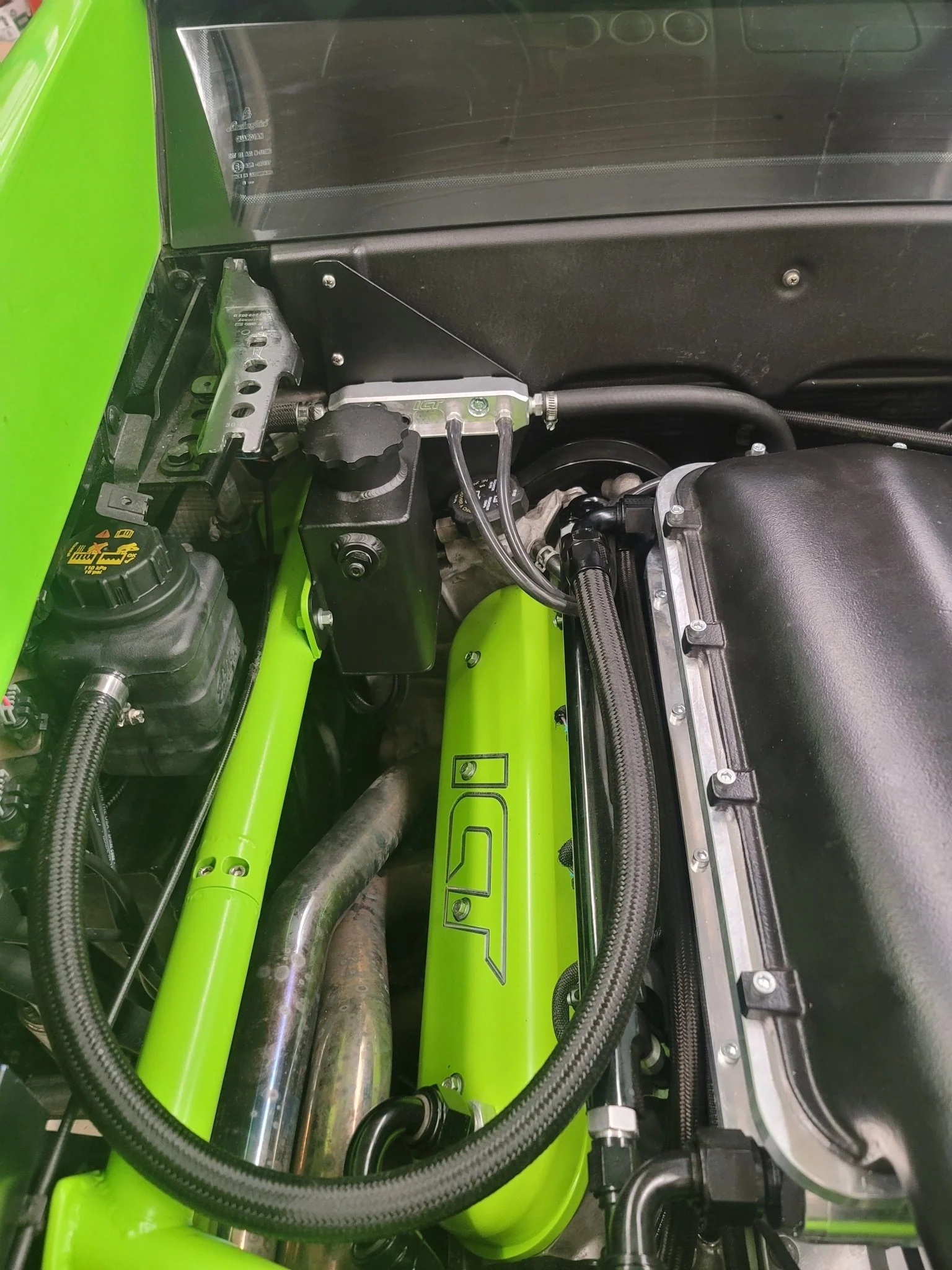

  • Designed and manufactured in our facility to replace the factory Gallardo V10 with a LS V8
  • Heavy duty mounts rated for vehicles up to 1,500hp with a painted black finish for long lasting protection
  • These mounts move the transmission 2 inches back from the factory location. This will require the use of axle spacers.
  • Uses factory transmission mount nut

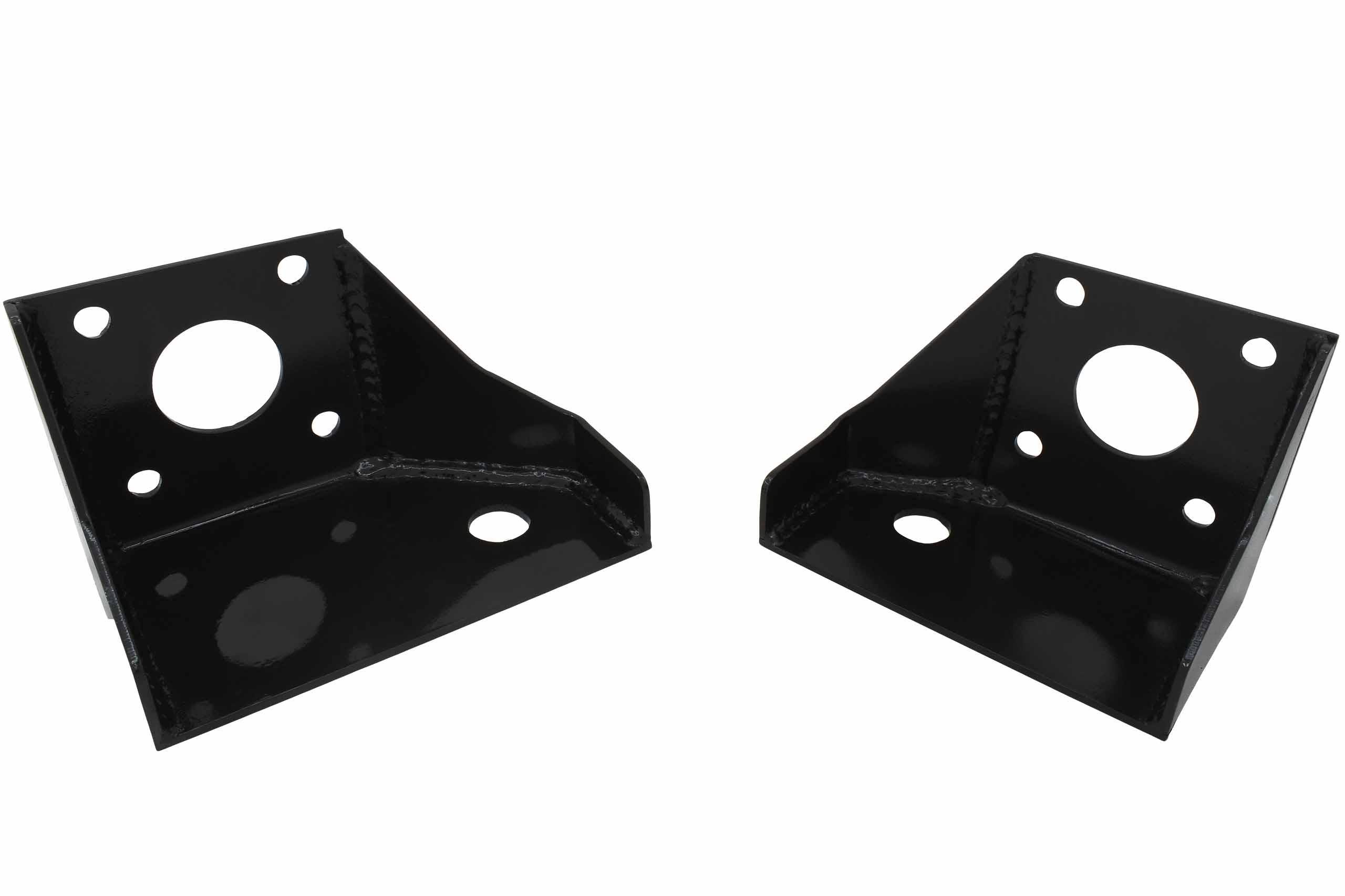

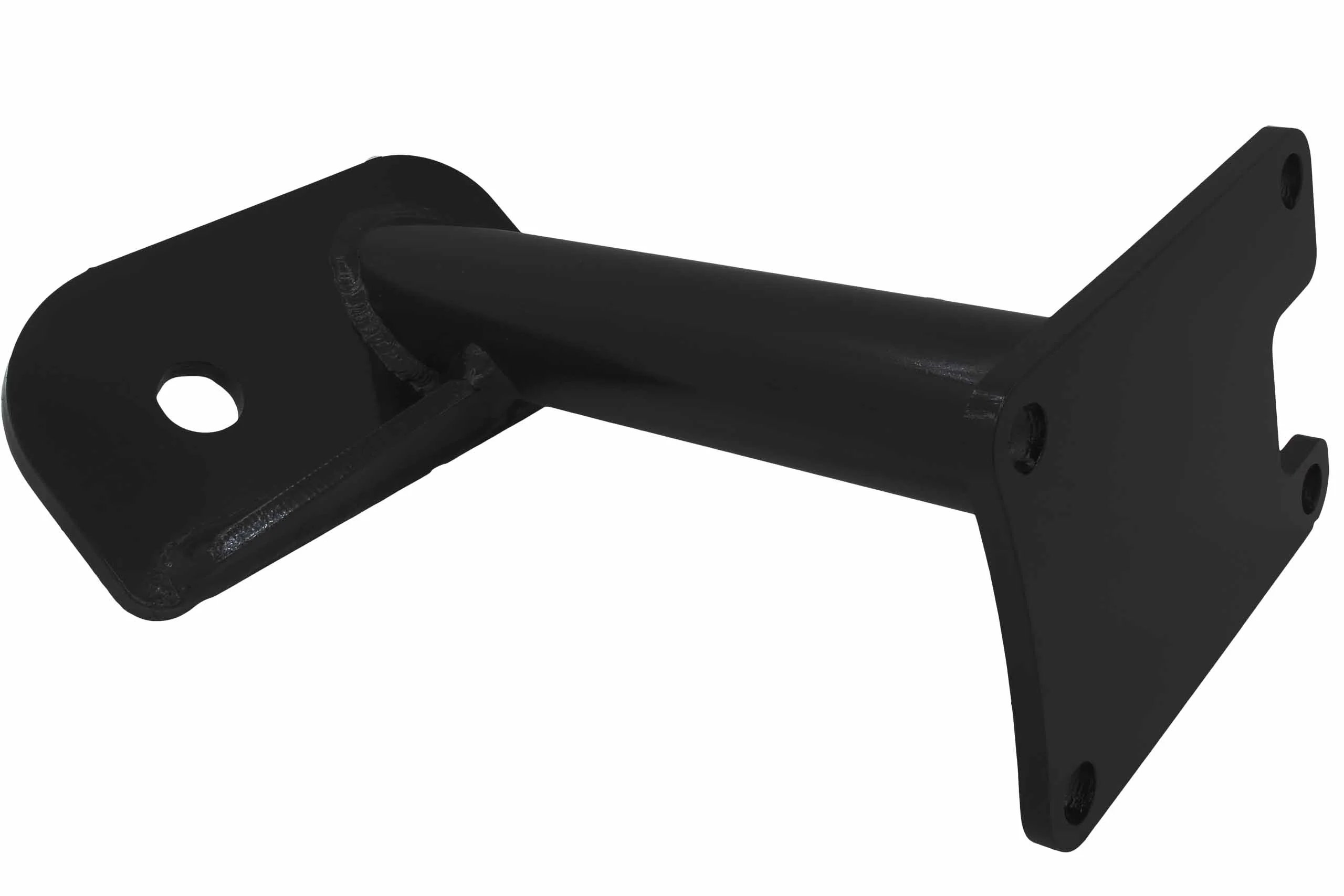

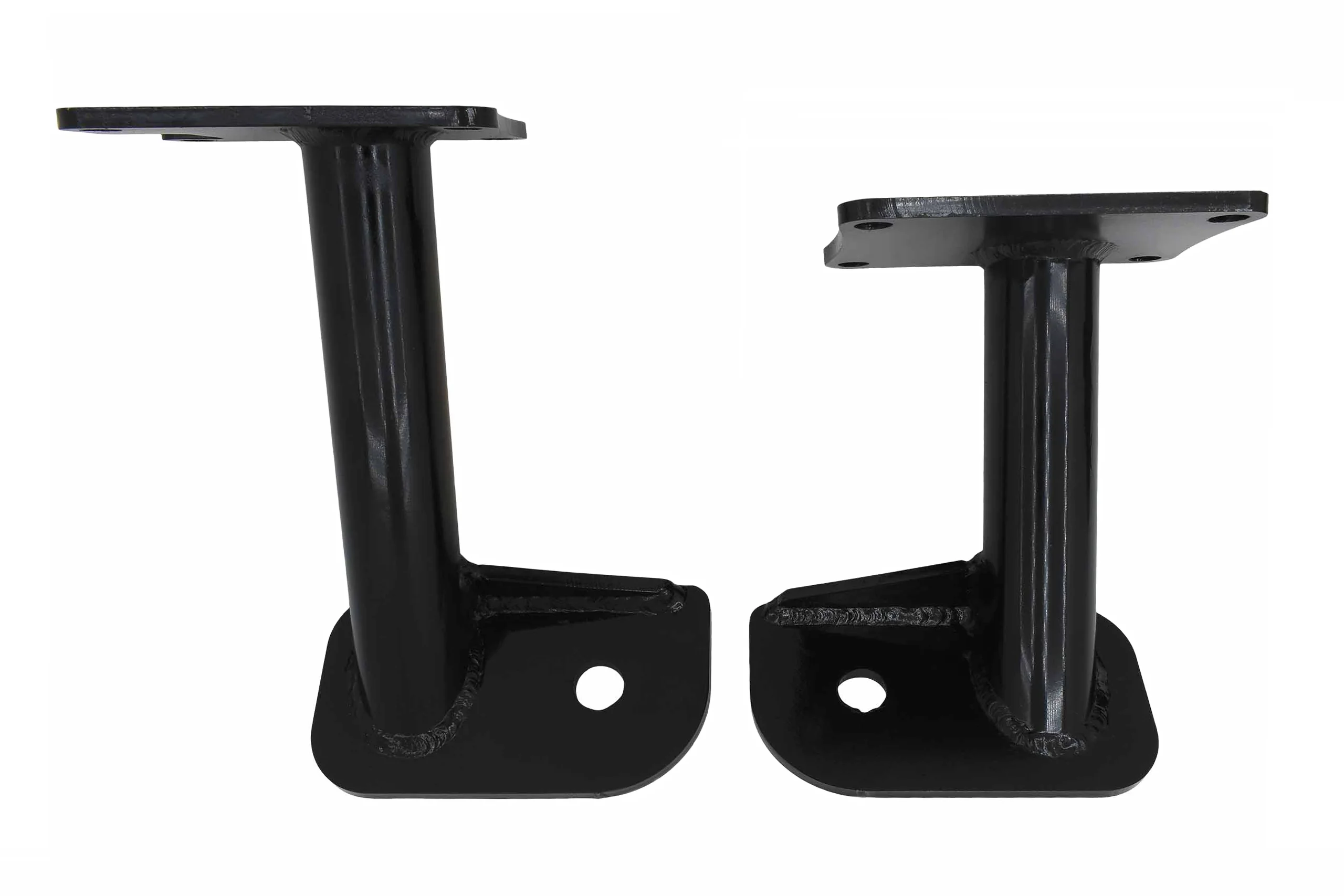

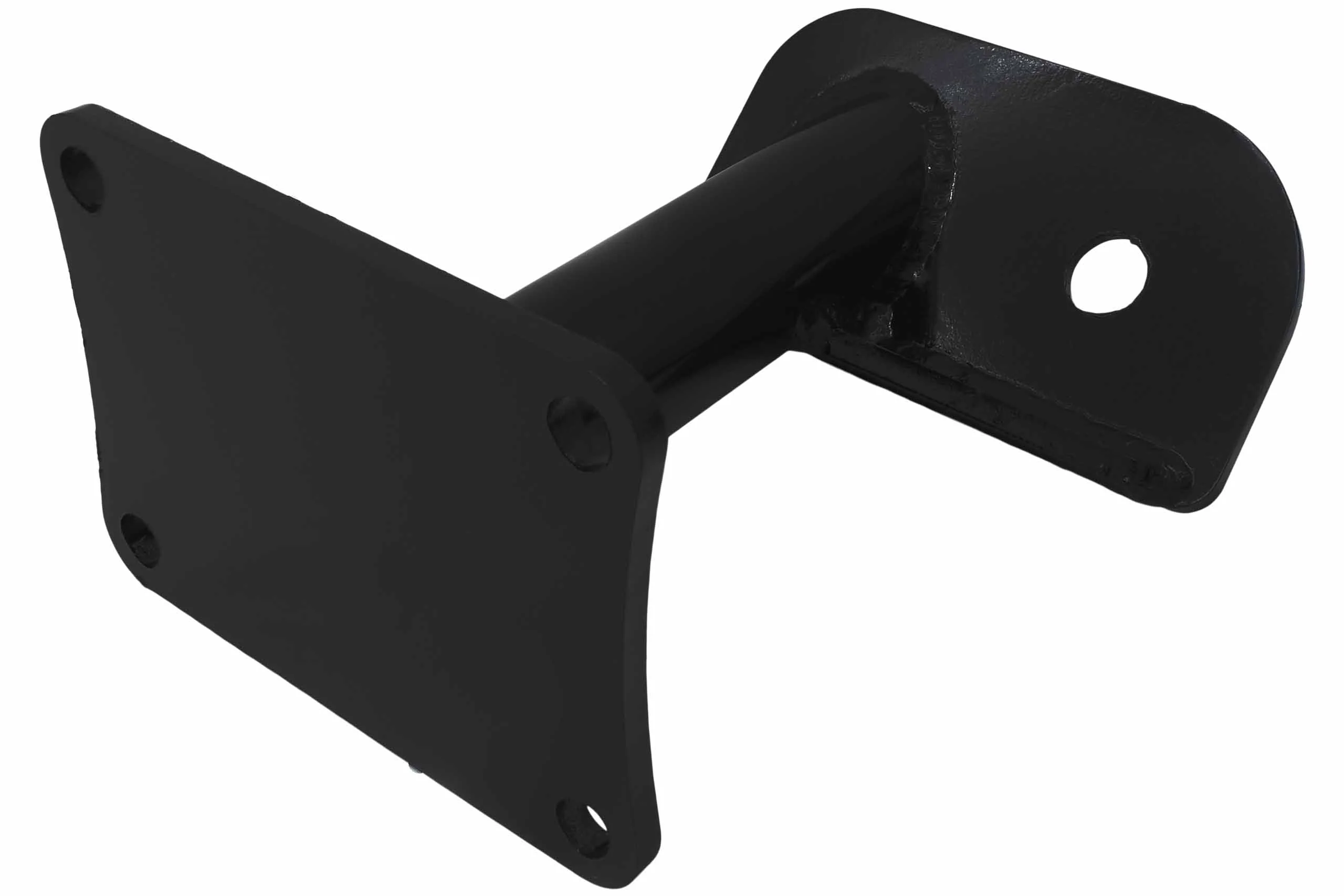

  • Includes: engine mount, transmission mount, and bolts

Compatible with (based on vehicle 3D scans by ICT)

  • Lamborghini Gallardo   04-12

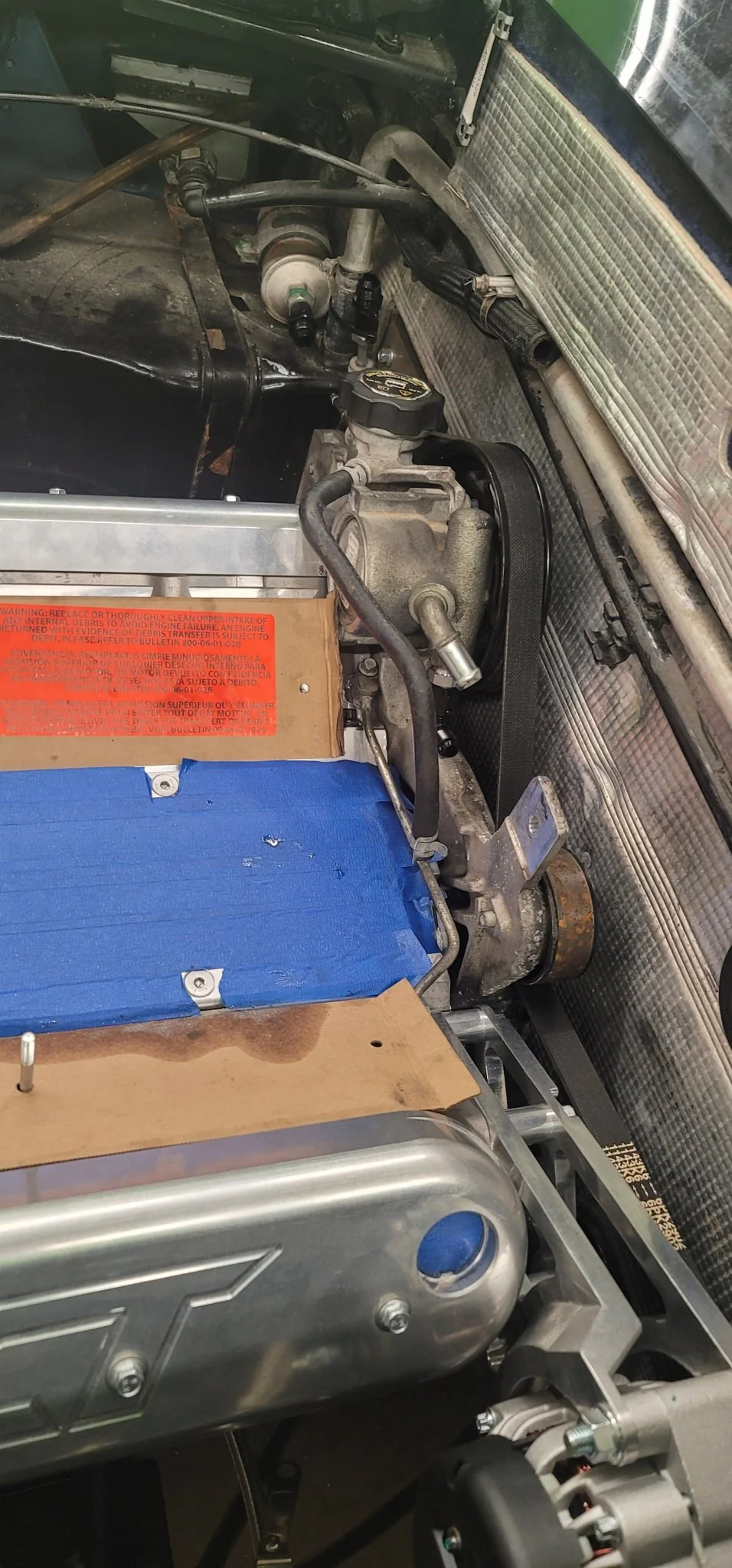

Requires swap components:

  • LS4 water pump assembly 89018039
  • LS4 thermostat 12600178
  • LS4 radiator cap 15293434
  • LS4 balancer 12635650
  • LS4 idlers 12596977,12569736, and 19252589
  • LS4 AC compressor 19418180
  • Power steering pump 19369077
  • Power steering pump pulley 12597211
  • Power steering reservoir 88964568
  • Power steering reservoir cap 15267531
  • Power steering reservoir hose 15898529
  • Moroso oil pan 20138
  • Moroso oil pickup tube 24052
  • SLC Grazziano Transaxle to LS engine adapter plate
  • Manual pedal box 401721140R
  • E-Gear removal block 086311681
$396.00

Original: $1,319.99

-70%
2003-2008 Lamborghini Gallardo LS Engine Mount Conversion Swap Kit

$1,319.99

$396.00

Product Information

Shipping & Returns

Description

2003-2008 Lamborghini Gallardo LS Engine Mount Conversion Swap Kit

Compatible with 2003-2008 Pre-LP Lamborghini Gallardo applications

  • Designed and manufactured in our facility to replace the factory Gallardo V10 with a LS V8
  • Heavy duty mounts rated for vehicles up to 1,500hp with a painted black finish for long lasting protection
  • These mounts move the transmission 2 inches back from the factory location. This will require the use of axle spacers.
  • Uses factory transmission mount nut
  • Includes: engine mount, transmission mount, and bolts

Compatible with (based on vehicle 3D scans by ICT)

  • Lamborghini Gallardo   04-12



Requires swap components:

  • LS4 water pump assembly 89018039
  • LS4 thermostat 12600178
  • LS4 radiator cap 15293434
  • LS4 balancer 12635650
  • LS4 idlers 12596977,12569736, and 19252589
  • LS4 AC compressor 19418180
  • Power steering pump 19369077
  • Power steering pump pulley 12597211
  • Power steering reservoir 88964568
  • Power steering reservoir cap 15267531
  • Power steering reservoir hose 15898529
  • Moroso oil pan 20138
  • Moroso oil pickup tube 24052
  • SLC Grazziano Transaxle to LS engine adapter plate
  • Manual pedal box 401721140R
  • E-Gear removal block 086311681
